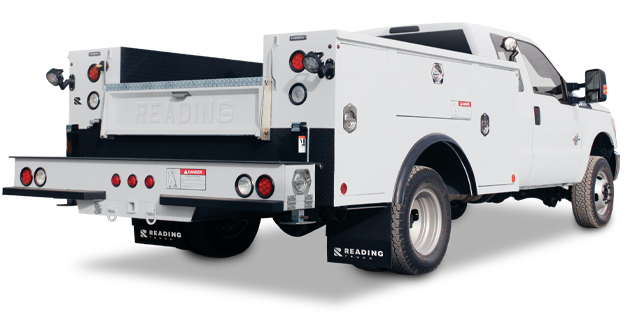

Mechanic Service Body Series
For mechanics who work in the most demanding jobsites and need something other than the typical service body. Loaded with impressive standard features including a heavy-duty ladder-frame understructure.
Mechanics Legacy Service Body - MM100 SERIES
| MODEL | CAB-TO-AXLE | A | B | C | D | APPROX. COMPARTMENT CLEAR DOOR OPENINGS | ||||||||||
| E | F | G | ||||||||||||||
| STANDARD | ||||||||||||||||
| MM100FR* | 60” | 34” | 48” | 26” | 108” | 35-1/2” x 24-3/4” | 15-1/2” x 40-1/4” | 35-1/2” x 19-1/4” | ||||||||
| MM100G** | 60” | 34” | 48” | 26” | 108” | 35-1/2” x 24-3/4” | 15-1/2” x 40-1/4” | 35-1/2” x 19-1/4” | ||||||||

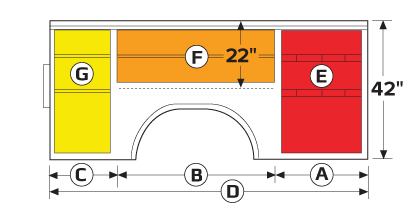

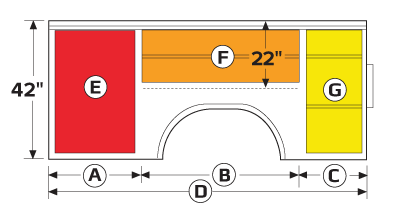

Compartment Layout: 100 Series
Road Side
Curb Side
The Master Mechanic 100 is a 9 foot body designed for a DRW cab and chassis with a 60″ cab-to-axle.
– MM100FR is 96″ wide.
– MM100G is 89″ wide.
Recommended chassis : Class III ( F-350, 3500HD, Ram 3500, etc.)
The Master Mechanic Series line is built modularly, so the dimensions listed can be configured to your exact specifications.
Mechanics Legacy Service Body - MM200 SERIES
| MODEL | CAB-TO-AXLE | A | B | C | D | APPROX. COMPARTMENT CLEAR DOOR OPENINGS | ||||||||||||
| E | F | G | H | |||||||||||||||
| STANDARD | ||||||||||||||||||
| MM200 (road side) | 84” | 28.5” | 28.5” | 48” | 26” | 37-1/2” x 22-3/4” | 37-1/2” x 22-3/4” | 14-1/2” x 40-1/4” | 37-1/2” x 19-1/4” | |||||||||
| MM200 (curb side) | 84” | 35” | 22” | 48” | 26” | 37-1/2” x 26-1/4” | 37-1/2” x 19-1/4” | 14-1/2” x 40-1/4” | 37-1/2” x 19-1/4” | |||||||||
Compartment Layout: 200 Series
Road Side
Curb Side
The Master Mechanic Series MM200 is a 11 foot body designed for a DRW cab and chassis with a 84″ cab-to-axle.
Recommended chassis : Class IV ( F-450, 4500HD, Ram 4500, etc.)
The Master Mechanic Series line is built modularly, so the dimensions listed can be configured to your exact specifications.
Features

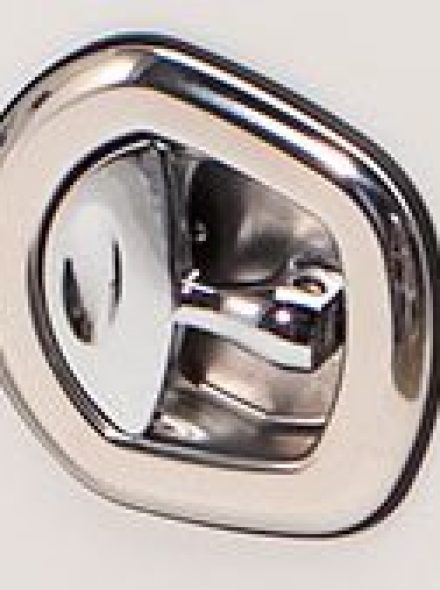

Compression Handle
Large compression handles are designed with ergonomics in mind, easy to operate with a gloved hand. The compression feature helps cinch the door tight during latching and secures the door in the closed position.

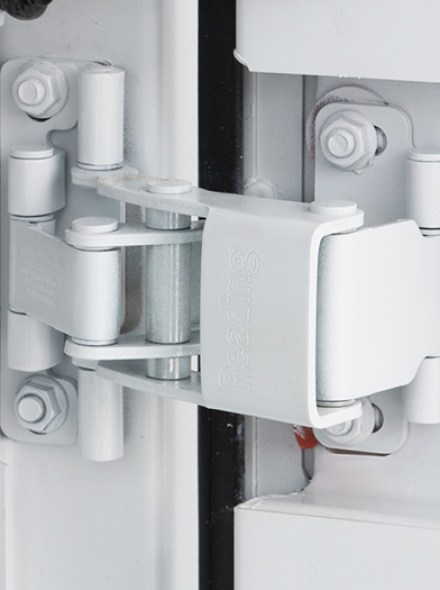

Internal Hidden Hinges
Internal hidden hinges create a smooth body surface and minimal pry points providing more secure storage compartments.

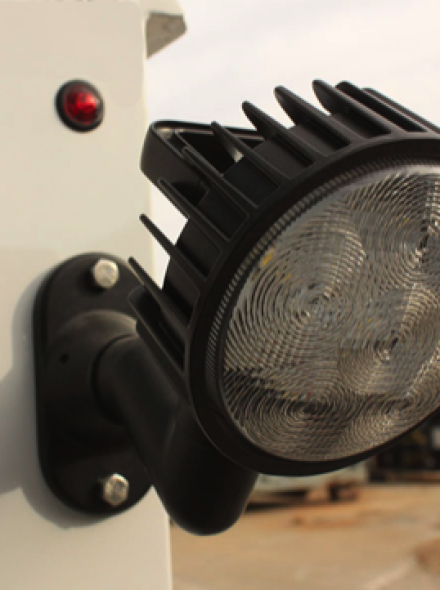

External Lighting
External lighting gives the user 360 degrees of pivotable lighting. Completely weather resistant.
Modular Design
Modular design allows for easier and less expensive repair and replacement of damaged components.
3-Point Locking
True 3-point locking when the handle is in the closed position.
Flush Mount Doors
The flush mount doors give the body a clean appearance and a smooth surface for applying company graphics. It also creates minimal pry points for added security.
Horizontal Cross-Members
Every body in the Master Mechanic Series is built with a minimum of 2 cross-members, reinforcing the substructure unlike any other body on the market.
Integrated Tie-Downs
The tie-downs are fully integrated into the substructure of the body and flush with the cargo floor providing an unobstructed bed surface.
Nonskid Surface Protection
Reading MM bodies include a non-skid surface coating, that improves traction and reduces the risk of slip and fall injuries.
LED Interior Dome Lights
LED dome lighting located on interior ceiling of compartments.
Similar Truck Bodies

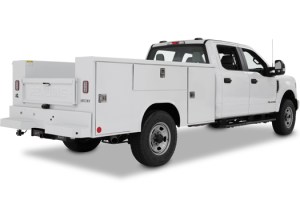

Classic II Aluminum Service Body
