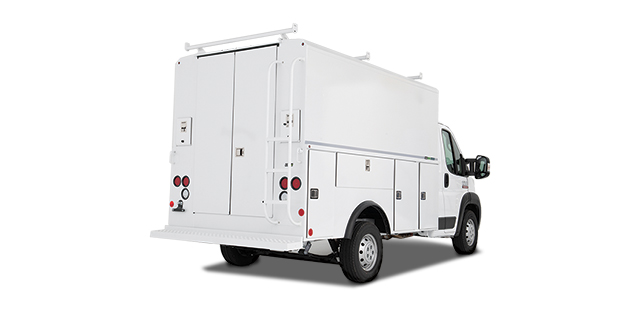

Aluminum Enclosed Bodies for Van and Low Cab Forward Chassis – Classic Service Van

It’s 50% lighter than comparably sized steel vans and delivers money-saving fuel economy with increased payload. The enclosed space offers excellent security for your valuables while innovative storage keeps you organized.

 ACCESS LADDER
ACCESS LADDER

All-aluminum ladder provides access to roof-mounted ladder racks. Can be mounted curbside or roadside.

ALUMINUM LADDER RACK
ALUMINUM LADDER RACK

Aluminum, three-bar roof-mounted overhead ladder rack, available for all enclosed body models.

Latch-Matic® System Integration with Chassis Locks
Latch-Matic® System Integration with Chassis Locks

The Reading® Latch-Matic system can be controlled using the existing OEM keyfob remote and power door-locks on the chassis. When the Latch-Matic system is integrated to the chassis, the driver’s OEM key fob, door lock switches, will lock and unlock the service body as well as the chassis doors. Available for most Ford, GM and RAM chassis.

PULL-DOWN ASSIST LADDER RACK
PULL-DOWN ASSIST LADDER RACK

Single or double pull-down assist ladder racks for either 57 or 75 models.

TOW HITCH - CSV
TOW HITCH – CSV
 WIND DEFLECTOR
WIND DEFLECTOR

Add-on fiberglass front wind deflector reduces noise in the cab.

CLASSIC SERVICE VAN - CSV 57

MODEL COMPARTMENT DEPTH REAR DOOR OPENING COMPARTMENT CLEAR DOOR OPENINGS OVERALL LENGTH OVERALL WIDTH AT RUBRAIL INSIDE HEIGHT OUTSIDE HEIGHT FLOOR WIDTH CAB-TO-AXLE WEIGHT ALL ALUM. BASE BODY BUMPER WEIGHT ADD TO BASE BODY
A B C D
CHEVY/GMC/FORD E-SERIES
CSV57-SW 17-1/2” 48-1/2”W x 54-1/8”H (4) 22-1/2”W x 33-3/4”H (2) 50-1/2”W x 12-3/4”H (2) 17-1/2”W x 33-3/4”H (2) 10-1/4”W x 13-1/2”H 132” 85-1/2” 57” 68-1/2” 48-1/2” 80” 1278 lbs. 55 lbs.
FORD TRANSIT
CSV57-SW 17-1/2” 48-1/2”W x 54-1/8”H (4) 22-1/2”W x 33-3/4”H (2) 50-1/2”W x 12-3/4”H (2) 17-1/2”W x 33-3/4”H (2) 10-1/4”W x 13-1/2”H 132” 85-1/2” 57” 68-1/2” 48-1/2”† 82-1/2” 1285 lbs. 55 lbs.
CSV57-DW 17-1/2” 48-1/2”W x 54-1/8”H (4) 22-1/2”W x 33-3/4”H (2) 50-1/2”W x 12-3/4”H (2) 17-1/2”W x 33-3/4”H (2) 10-1/4”W x 13-1/2”H 132” 85-1/2” 57” 68-1/2” 48-1/2”† 82-1/2” 1285 lbs. 55 lbs.
RAM PROMASTER
CSV57-SW 17-1/2” 48-1/2”W x 54-1/8”H (4) 22-1/2”W x 33-3/4”H (2) 50-1/2”W x 12-3/4”H (2) 17-1/2”W x 33-3/4”H (2) 10-1/4”W x 13-1/2”H 132” 85-1/2” 57” 68-1/2” 48-1/2” 81-1/10” 1300 lbs. 55 lbs.

Compartment Layout 57″

Compartment Layout

Standard Rearview

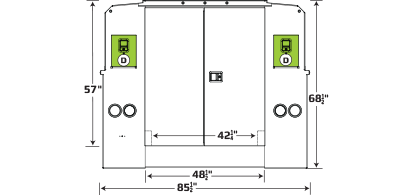

Transit Promaster Rearview

CLASSIC SERVICE VAN - CSV 72-75

MODEL COMPARTMENT DEPTH REAR DOOR OPENING COMPARTMENT CLEAR DOOR OPENINGS OVERALL LENGTH OVERALL WIDTH AT RUBRAIL INSIDE HEIGHT OUTSIDE HEIGHT FLOOR WIDTH CAB-TO-AXLE WEIGHT ALL ALUM. BASE BODY BUMPER WEIGHT ADD TO BASE BODY
A B C D
CHEVY/GMC/FORD E-SERIES
CSV75-SW 17-1/2” 48-1/2”W x 72-1/8”H (4) 22-1/2”W x 33-3/4”H (2) 50-1/2”W x 12-3/4”H (2) 17-1/2”W x 33-3/4”H (2) 10-1/4”W x 13-1/2”H 132” 85-1/2” 75” 86-1/2” 48-1/2” 80” 1428 lbs. 55 lbs.
CSV75-DW 22-1/2” 48-1/2”W x 72-1/8”H (4) 22-1/2”W x 33-3/4”H (2) 50-1/2”W x 12-3/4”H (2) 17-1/2”W x 33-3/4”H (2) 10-1/4”W x 13-1/2”H 132” 95-1/2” 75” 86-1/2” 48-1/2” 80” 1543 lbs. 60 lbs.
FORD TRANSIT
CSV72-SW 17-1/2” 48-1/2”W x 69-1/8”H (4) 22-1/2”W x 33-3/4”H (2) 50-1/2”W x 12-3/4”H (2) 17-1/2”W x 33-3/4”H (2) 10-1/4”W x 13-1/2”H 132” 85-1/2” 72” 83-1/2” 48-1/2”† 82-1/2” 1415 lbs. 55 lbs.
CSV72-DW 17-1/2” 48-1/2”W x 69-1/8”H (4) 22-1/2”W x 33-3/4”H (2) 50-1/2”W x 12-3/4”H (2) 17-1/2”W x 33-3/4”H (2) 10-1/4”W x 13-1/2”H 132” 85-1/2” 72” 83-1/2” 48-1/2”† 82-1/2” 1415 lbs. 55 lbs.
RAM PROMASTER
CSV75-SW 17 1/2” 48-1/2”W x 72-1/8”H (4) 22-1/2”W x 33-3/4”H (2) 50-1/2”W x 12-3/4”H (2) 17-1/2”W x 33-3/4”H (2) 10-1/4”W x 13-1/2”H 132” 85 1/2” 75” 86-1/2” 48-1/2” 81-1/10” 1450 lbs. 55 lbs.

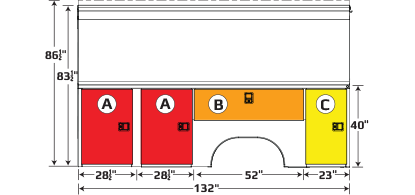

Compartment Layout

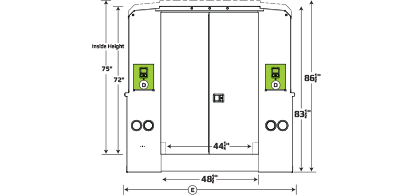

Rearview

Enclosed Body Brochure
Enclosed Body Brochure
Download

Features

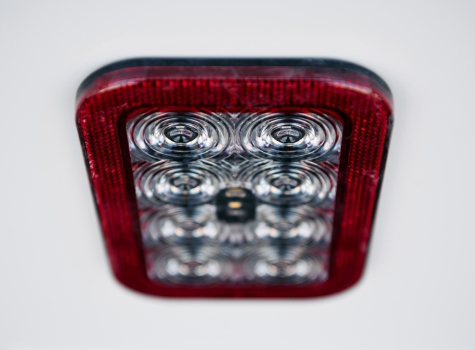

LED Lights

LED Lights

Reading service and enclosed utility bodies are equipped with long-lasting LED lights for worry-free, low-maintenance service, including clearance, marker, stop, tail, turn and reverse lights. You’ll improve your vehicle’s visibility and safety in any environment.

Interior Lighting

Interior Lighting

Roof-mounted LED dome lights are long lasting, to light up your workspace and keep your crews productive at all hours.

Cab Access Door

Cab Access Door

Cab access door allows personnel to enter the enclosed body from the cab.  Quiet, smooth operating, no maintenance, fully adjustable.

Sturdy Swing-Out Rear Doors

Sturdy Swing-Out Rear Doors

Rear doors provide easy access to the enclosed rear cargo area.  Doors are crafted with Reading signature stainless steel paddle handle and rotary lock on the outside, and inside door release.

Rear Access Doors

Rear Access Doors

Rear access doors make it easy to load and store long items like conduit or piping. The access doors are positioned so the tail lights remain visible when transporting longer material that requires access doors to be open.

Stainless Steel Rotary Locks With Paddle Handles

Stainless Steel Rotary Locks With Paddle Handles

Reading’s stainless steel locks and paddle handles have a clean, fastener-free appearance that’s both professional and functional. Locks and handles include a pry-resistant, automotive-style “free-wheeling” design with double-bitted keys. Handles are gasketed and include O-rings to prevent water intrusion. Locks are compatible with Reading’s optional Latch-Matic® remote locking system.

Aluma-Fill® Cup

Aluma-Fill® Cup

An all-aluminum dish around the fuel cap protects the body from accidental nicks and scratches during refueling, and is more durable than typical plastic brackets.

Nitrogen Gas Strut Door Holders

Nitrogen Gas Strut Door Holders

All vertical compartment doors are equipped with nitrogen gas strut door holders. Struts hold the doors in the open position and provide a smooth, controlled motion on close, to prevent overslam and body damage.
