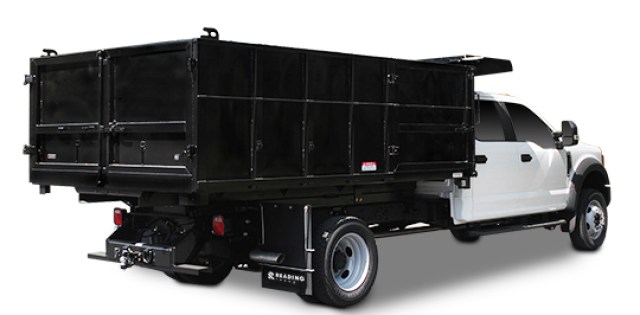

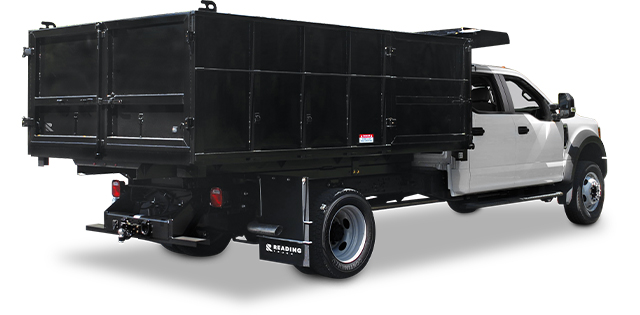

The premium A60 coating-weight steel makes it perfect for hauling loose, bulk or skidded material. Get the long-lasting durability you need to work on harsh terrain. Available in 9’ and 12’ models.
Retractable step for slide out convenience and storage; located under the side door opening for easy curbside access.
Combination ICC underride with pintle hook hitch provisions for mounting a pintle hook hitch.
Underbody self-storing ladder for easy tarp control or cab guard access.
Additional underbody tool boxes are available in aluminum or steel; sizes from 24″ to 60″. Can be installed on curb side or street side.

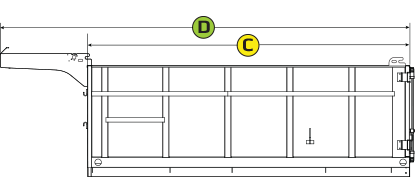

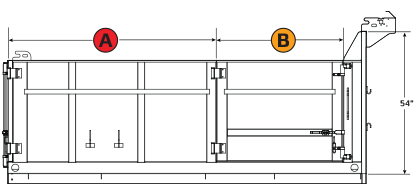

|MODEL||OVERALL LENGTH||BULK HEAD HEIGHT||CAB GAURD||A||B||C||D||APPROX. WEIGHT|
|SL-LS-9 42BH/40CG||9′||42” or 48″||40”||50-1/2”||52”||112-1/4”||152-1/4”||2280 lbs.|
|SL-LS-12 42BH/40CG||12′||42” or 48″||40”||86-1/2”||52”||148-1/4”||188-1/4”||2625 lbs.|
|SL-LS-12 54BH/12CG||12′||48″ or 54”||12”||86-1/2”||52”||148-1/4”||160-1/4”||2575 lbs.|

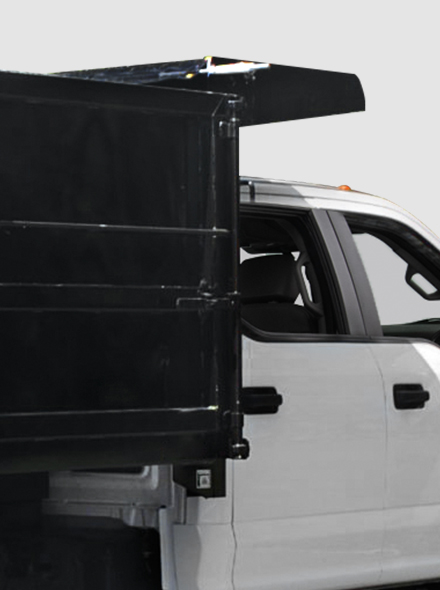

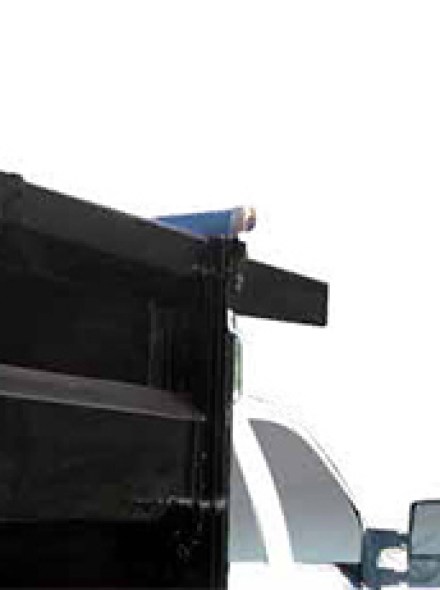

Fully Welded Cab Guard
Cab shield protects the roof of the chassis cab from debris. Includes integral wind deflector and lashing rings. Available in 40″ (chassis cabs) and 12″ (tilt cabs/LCF chassis).

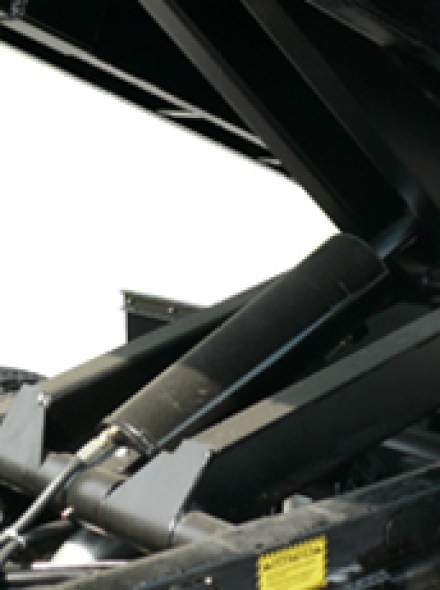

Landscaper SL delivers outstanding payload capacity. The 12′ models include NTEA Class D rated hoist, with up to 9 Tons of capacity from a 6″ diameter cylinder. The 9′ models include NTEA Class C rated hoist, with up to 7.75 Tons of capacity from a 5″ diameter cylinder. All hoists are double-acting — power-up and power-down — for convenient operation. Hoist assembly includes lubricating grease fittings on hoist and hinge assembly. Features safety body prop, grease fittings for ease of service, an all-weather cover for motor and pump, and and in-cab tethered hand-held control.

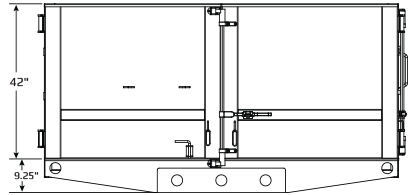

Rear Swing-Out Barn Doors
Clear opening doors swing open a full 270°, and can be held in place with door stays. Doors are be opened and secured with an easy operating cam-latch handle.
Tarp Tension Tie Down Cleats
Positioned on the top of the body for easy door opening.
Side Swing Door
Curbside of body includes a 52″ clear-opening side door, with two-point cam lock and handle.
