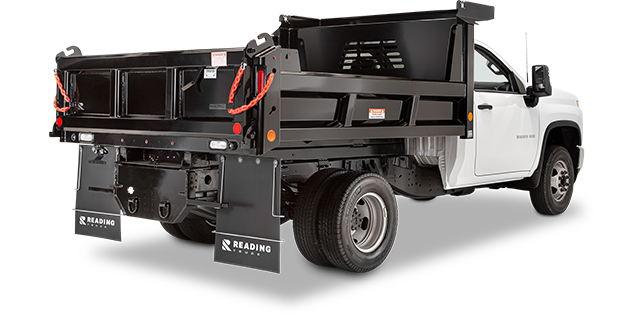

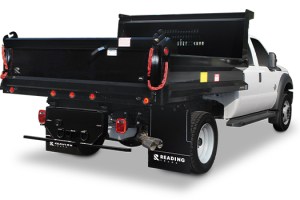

Marauder Dump Body
Haul the maximum payload in the most affordable way while boosting fuel economy. A heavy-duty understructure, rugged steel floor and sidewall construction provide long-lasting durability for working in rugged jobsites.
Alarm provides additional safety on the job site.
Guillotine-style in sliding-track coal chute door.
Bodies come standard in powder coat black. Upgradeable options include: red, white and charcoal.
Includes integral wind deflector and lashing rings, available in 40″ and 12″
40” full cab shield.

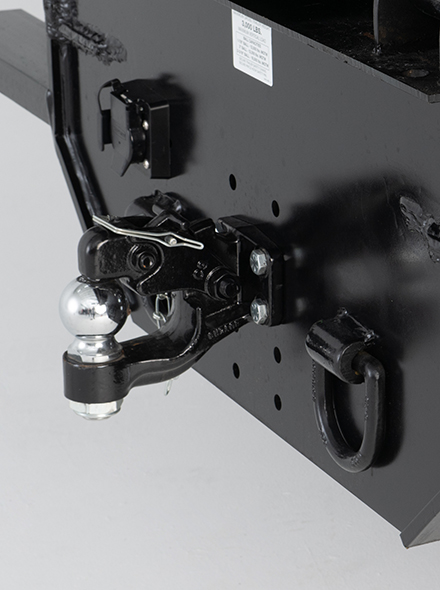

1/2″ steel drop plate with adjustable mounting heights, ICC underride, safety chain D-rings and choice of 2-5/16″ ball/pintle combo, 2″ ball/pintle combo or 2″ receiver tube using Grade 8 hardware.
I & L provides secure and convenient access to tools and supplies. Vertical stack compartments.
Bolt-on sideboard gusset extension package available.
Installed in front of rear axle to prevent debris from hitting the truck cab when backing up.
Full-width tapered cab shield allows unit to be delivered with convenient, cost effective ship-thru.
Additional underbody tool boxes are available in aluminum or steel; sizes from 24″ to 60″. Can be installed on curb side or street side.
MARAUDER STANDARD DUTY DUMP BODY - MARAUDER
|Nominal Capacity(1/)||2 yard / 3 yard||3 yard / 4 yard||4 yard / 5 yard|
|ISC||Inside clear length||107″||131″||107″|
|ISW||Inside floor width||87-3/8″||87-3/8″||87-3/8″|
|Hoist Classification||NTEA Class C||NTEA Class D||NTEA Class D|
|Hoist Operating Capacity(2/)||8 Tons||12 Tons||12 Tons|
|Nominal Volume under Sides(1/)||3.21 cubic yds||3.93 cubic yds||4.01 cubic yds|
|Nominal Volume under Tailgate(1/)||4.41 cubic yds||5.40 cubic yds||5.21 cubic yds|
|Weight: Empty Dump Body only, without Hoist||1,845 lb||2,050 lb||2,120 lb|
|Weight: Sub-Frame mounted hoist assembly||660 lb||660 lb||660 lb|
Double-Acting Power Unit
Powered by 12-Volt supply, the electric-hydraulic power unit is double-acting with both power-up and power-down motion.
Tailgate Latch Pins
Heavy-duty latch pins with grease fittings.
Rugged Steel Floor
Two-piece HRA1011 steel floor plate is fully seam welded, and includes angled sidewalls to floor to eliminate “bridging” of material.
Full-Depth Rear Corner Posts
Full-depth rear corner posts with flame-cut hardware, “banjo eye” chain holders and tarp tension bar receivers.
Forward Tailgate Release
With an adjustable linkage, the forward tailgate release allows you to dump loads from a safer and more convenient location at the front of the body.
Heavy-Duty Tailgate Hardware
Heavy-duty steel hinges with grease fittings for lubricating.
Single-Lever Drop-Down Tailgate Release
The drop-down tailgate release is operated with a single, fast-acting lever.
