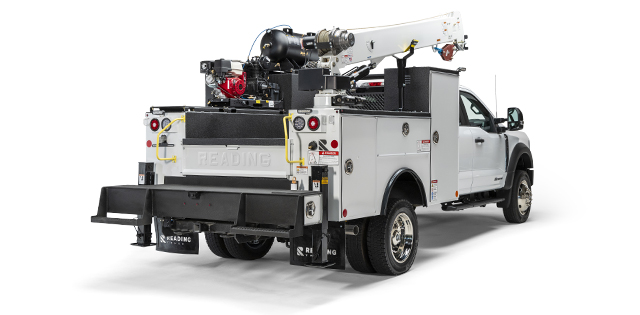

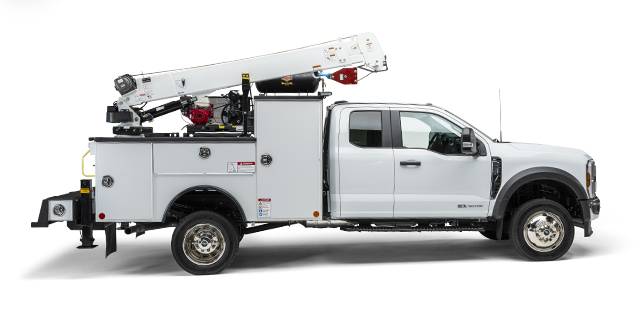

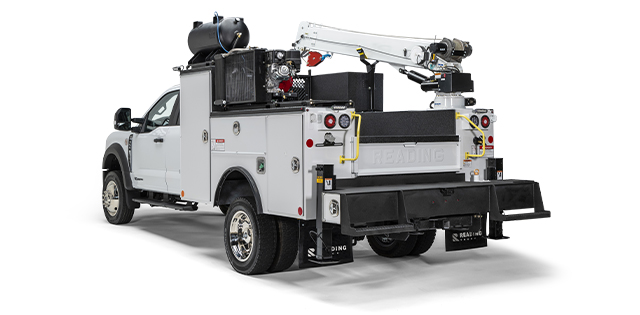

RM-25 Crane Body
The RM-25 Crane Body is the ideal solution for those who need reliable lifting capabilities without heavy daily demands. Featuring a heavy-duty understructure with 6″ high crossmembers, it provides a solid foundation for mid-weight lifting applications. Designed for cranes up to 5,000 lbs., it’s a dependable midweight performer built to get the job done.
A professional-grade, spray-on bedliner provides outstanding protection against chips, scuffs and damage while minimizing rust. It features a slip-resistant surface that improves traction and safety when walking in the bed.
Create a secure seal on your service body compartment doors without sacrificing convenience, all with the snap of a handle and padlock. The master-locking steel slide bar can simultaneously lock an entire compartment side to keep your tools and other equipment safe.
The RM Crane Body delivers three points of contact, to make it easy to climb in and out of the rear of the truck. Rear grab handles are generously sized, ergonomically placed, and included as standard equipment. Used in conjunction with our standard bumper steps, they help make the workday safer and easier.
RM-25 Crane Body – 9′ Body
| MODEL | CAB-TO-AXLE | A | B | C | APPROX. COMPARTMENT CLEAR DOOR OPENINGS | ||
| D | E | F | |||||
| 40" Roadside Height | 60" | 33" | 47" | 28" | 27 ½” W X 32 ½”H X 18 ¾”D | 45 ½” W X 12 1/4” H X 18 ¾”D | 22 ½” W X 32½”H X 18 ¾”D |
| 60" Roadside Height | 60" | 33" | 47" | 28" | 27 ½” W X 52 ½”H X 18 ¾”D | 45 ½” W X 12 1/4” H X 18 ¾”D | 22 ½” W X 32½”H X 18 ¾”D |
| 60" Curbside Height | 60" | 33" | 47" | 28" | 27 ½” W X 52 ½”H X 18 ¾”D | 45 ½” W X 12 1/4” H X 18 ¾”D | 22 ½” W X 32½”H X 18 ¾”D |
The RM-25 Crane Body is a 9’ Crane Body built for a crane rating up to 5,000 lb. (25,000 ft.lbs.) and a 60” cab-to-axle chassis. Recommended chassis – Class 4: Ford F-450; GM 4500HD; Chevrolet 4500; RAM 4500; International CV, as well as others.

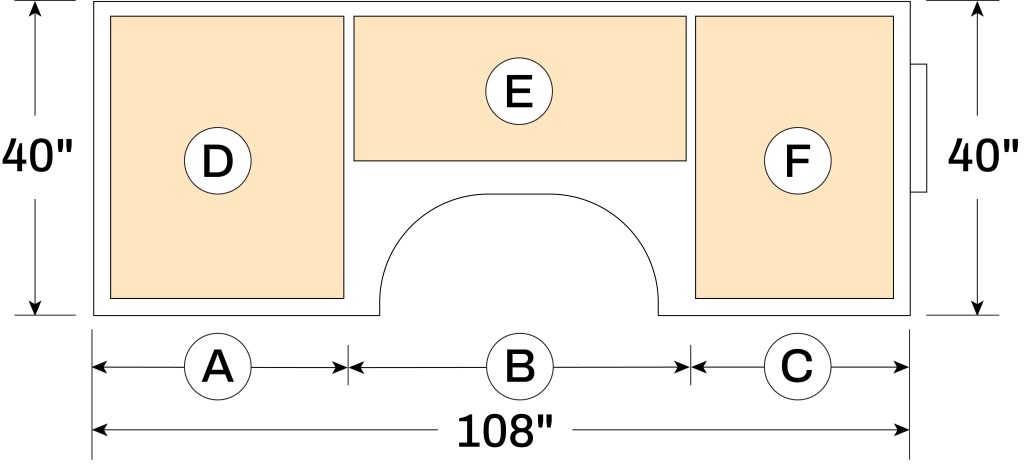

Roadside

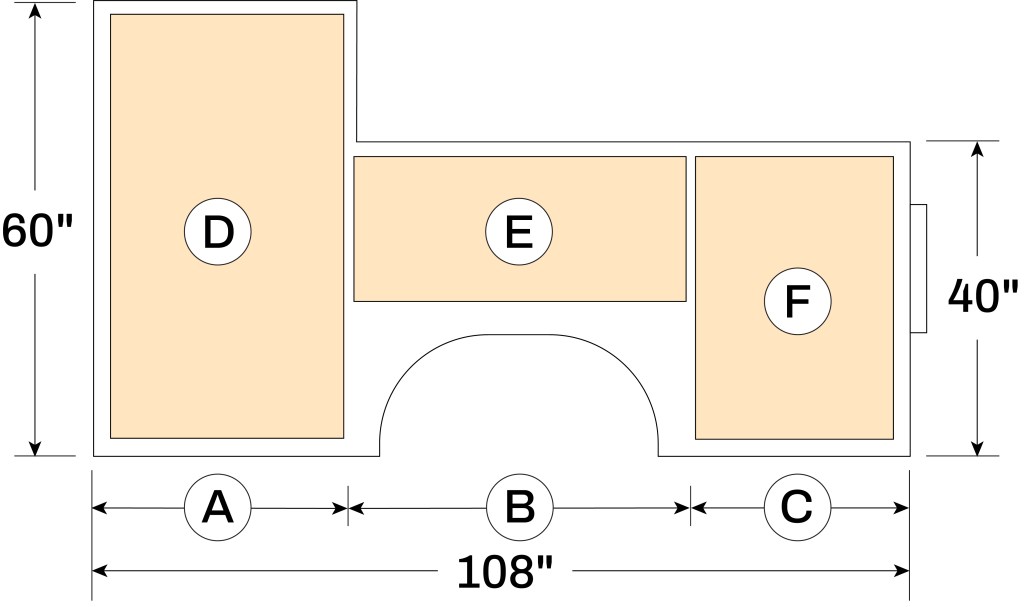

Roadside

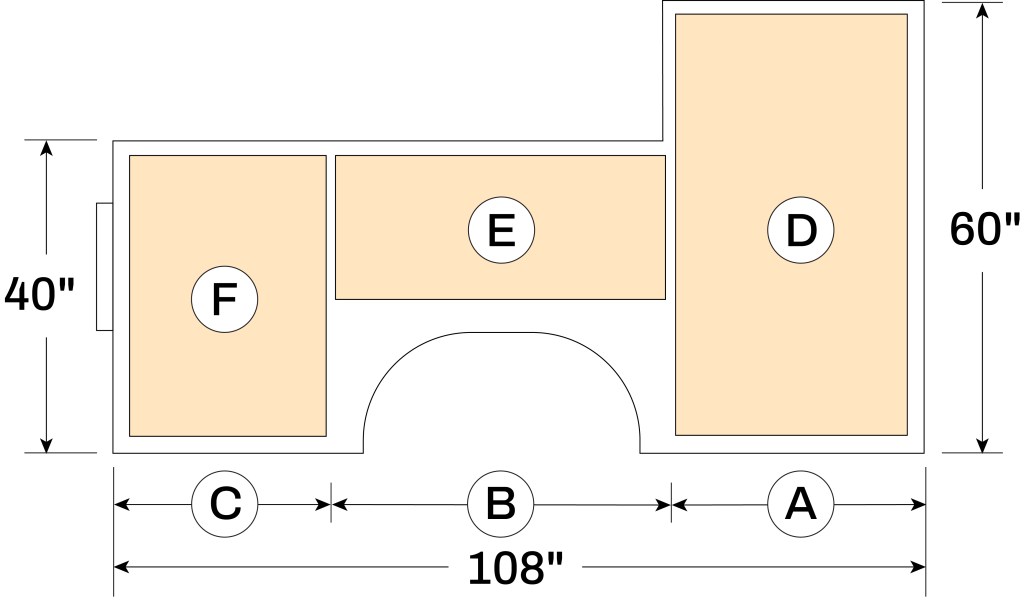

Curbside

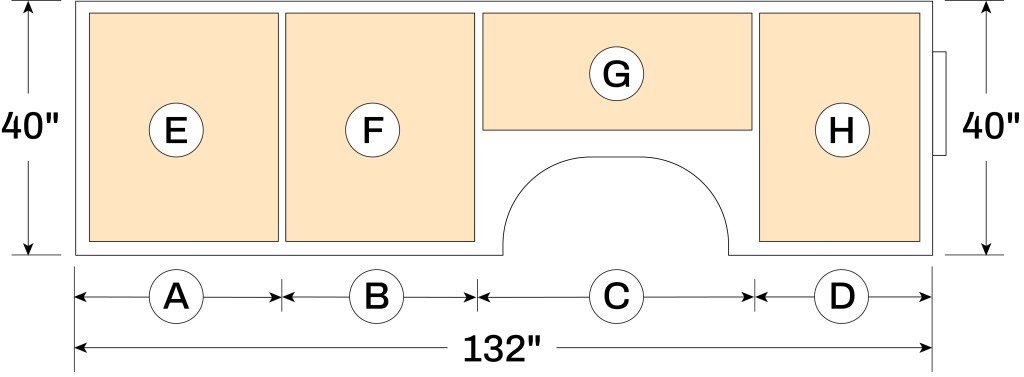

RM-25 Crane Body – 11′ Body
| MODEL | CAB-TO-AXLE | A | B | C | D | APPROX. COMPARTMENT CLEAR DOOR OPENINGS | |||
| E | F | G | H | ||||||
| 40" Roadside Height | 84" | 36" | 21" | 47" | 28" | 30 ½” W X 32 ½”H X 18 ¾”D | 17½” W X 32 ½”H X 18 ¾”D | 45 ½” W X 12 1/4” H X 18 ¾”D | 22 ½” W X 32½”H X 18 ¾”D |
| 60" Roadside Height | 84" | 36" | 21" | 47" | 28" | 30 ½” W X 52 ½”H X 18 ¾”D | 17½” W X 52 ½”H X 18 ¾”D | 45 ½” W X 12 1/4” H X 18 ¾”D | 22 ½” W X 32½”H X 18 ¾”D |
| 60" Curbside Height | 84" | 36" | 21" | 47" | 28" | 30 ½” W X 52 ½”H X 18 ¾”D | 17½” W X 52 ½”H X 18 ¾”D | 45 ½” W X 12 1/4” H X 18 ¾”D | 22 ½” W X 32½”H X 18 ¾”D |
The RM-25 Crane Body is a 11’ Crane Body built for a crane rating up to 5,000 lb. (25,000 ft.lbs.) and an 84” cab-to-axle chassis. Recommended chassis – Class 4: Ford F-450; GM 4500HD; Chevrolet 4500; RAM 4500; International CV, as well as others.

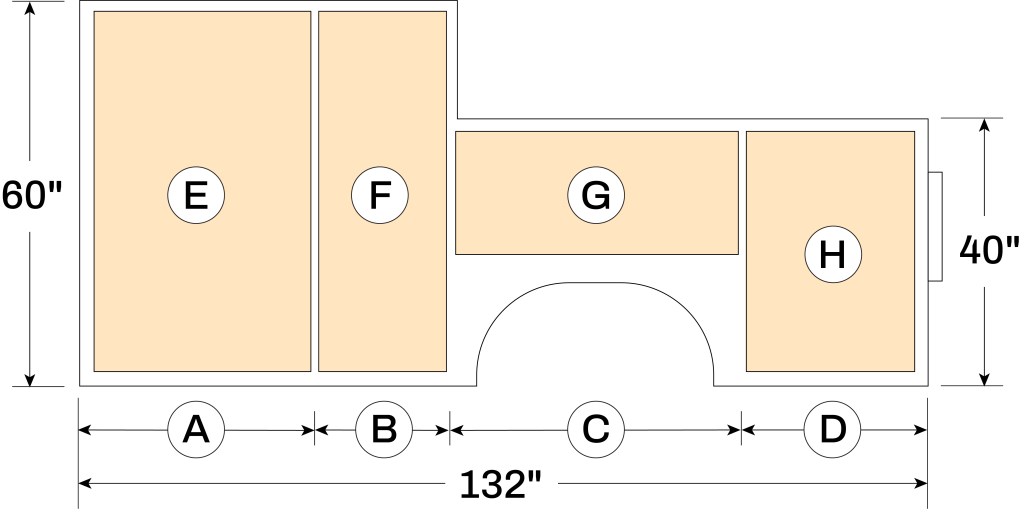

Roadside
Roadside
Curbside
Features
3-Point Locking
True 3-point locking when the handle is in the closed position.
Outriggers
Our outriggers provide a safe and stable lift every time. The RM-25 offers two outrigger options: 18,000 lbs. and 25,000 lbs., both with manual out and down functionality, ensuring you have the right level of support for your selected crane.

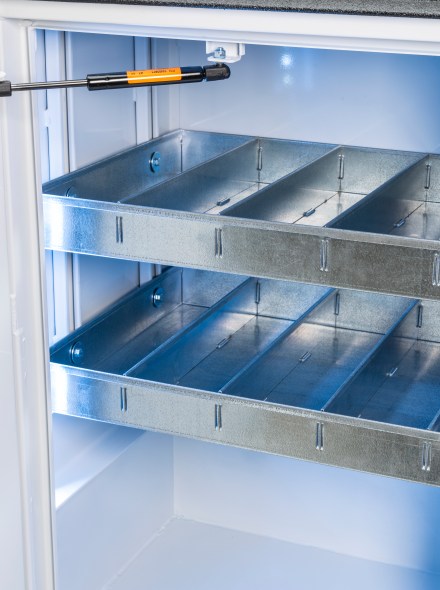

Adjustable Shelving
Professional-grade divider shelving is infinitely adjustable on strut channels, so you can arrange the shelves exactly where you want them. Add your own accessories using industry standard hardware for additional configurations.
Air Hose Access
The air hose reel payout is positioned at the rear for easy access, ensuring compressed air is readily available when needed. Designed for efficiency, this feature keeps your workflow smooth and your tools powered on the job site.
Tank Compartment
Designed for convenience and safety, the curbside front tank compartment provides a secure storage solution for oxy-acetylene tanks. Keep your equipment organized and easily accessible while ensuring a streamlined workflow on the job site.
Integrated Tie-downs
The 9′ bodies come equipped with four fully integrated tie-down rings in the load floor, while the 11′ & 14′ bodies feature six. These allow you to utilize the entire bed when not in use.
Hinges
Hinges are external to the body for maximum clear access to the compartments, protected from the elements by a fully concealed pin, and use marine-grade stainless steel bearings to ensure smooth, reliable operation. Hinge fasteners are internal to the body and are pry-resistant.
Understructure
A heavy-duty understructure with 6″ high crossmembers, offering a solid foundation for mid-weight lifting applications.
Compression Handle
Our ergonomically designed compression handles are easy
to use even while wearing gloves. With a full chrome polished
appearance, they look as great as they work.
