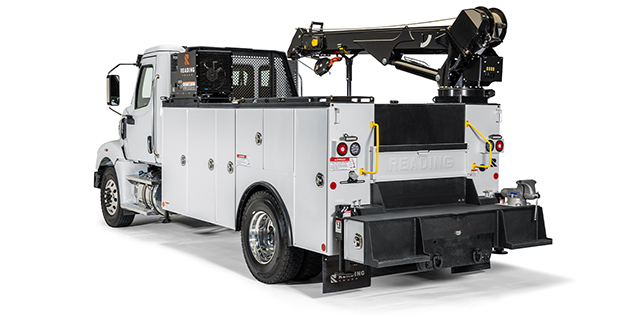

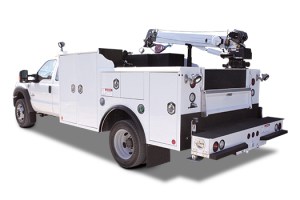

RM-78 Crane Body
Our most innovative crane body is built on a next generation torsion box understructure that delivers a powerful 78.000 pound-feet of lift and features an easy-to-upfit design.
78-SERIES CRANE BODY - MM278
| MODEL | CAB-TO-AXLE | A | B | C | D | APPROX. COMPARTMENT CLEAR DOOR OPENINGS | ||||||||||||
| E | F | G | H | |||||||||||||||
| STANDARD | ||||||||||||||||||
| MM278 (road side) | 84” | 28.5” | 28.5” | 48” | 26” | 51-1/2” x 22-3/4” | 51-1/2” x 22-3/4” | 27-1/4” x 40-1/4” | 51-1/2” x 19-1/4” | |||||||||
| MM278 (curb side) | 84” | 35” | 22” | 48” | 26” | 51-1/2” x 26-1/2” | 51-1/2” x 19-1/4” | 27-1/4” x 40-1/4” | 51-1/2” x 19-1/4” | |||||||||

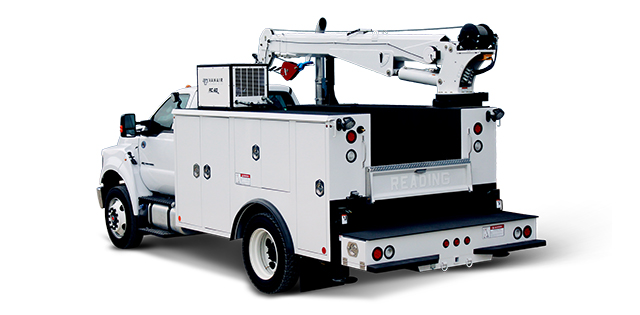

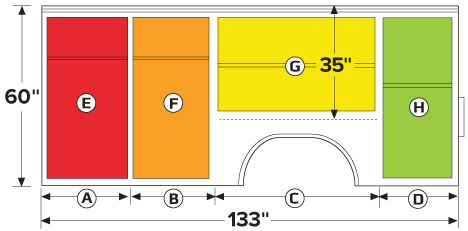

Road Side

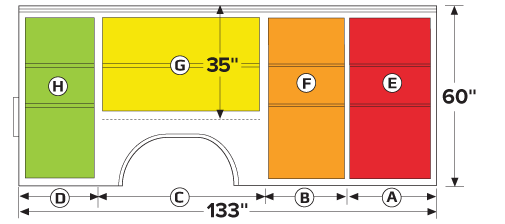

Curb Side
The Master Mechanic 278 Series is a 11 foot crane body built for a crane rating up to 12,000 lbs. (78,000 ft. lb.) and a 84″ cab-to-axle chassis.
Recommended chassis: Class VI (F-650, F-750, Peterbilt, Kenworth, etc.)
The Master Mechanic Series line is built modularly, so the dimensions listed can be configured to your exact specifications.
78-SERIES CRANE BODY - MM378
| MODEL | APPROX. WT. | CAB-TO-AXLE | A | B | C | D | E | APPROX. COMPARTMENT CLEAR DOOR OPENINGS | ||||||||||||||||
| F | G | H | I | J | ||||||||||||||||||||
| STANDARD | ||||||||||||||||||||||||
| MM378 | 5,023.5 lbs. | 120” | 32” | 32” | 29” | 50” | 26” | 30-1/2” x 51-1/4” | 30-1/2” x 51-1/4” | 28-1/2” x 51-1/4” | 48-1/2” x 34-1/4” | 24-1/2” x 51-1/4” | ||||||||||||

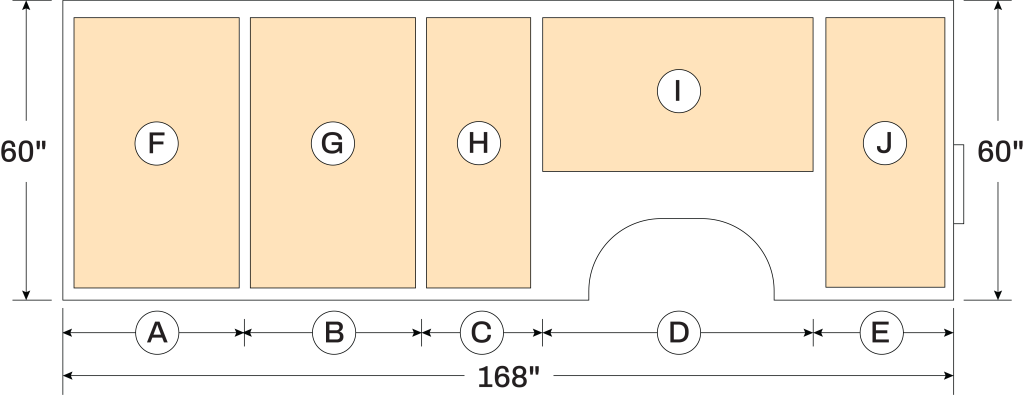

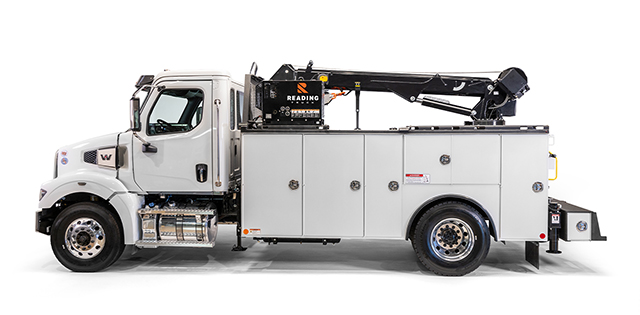

Road Side

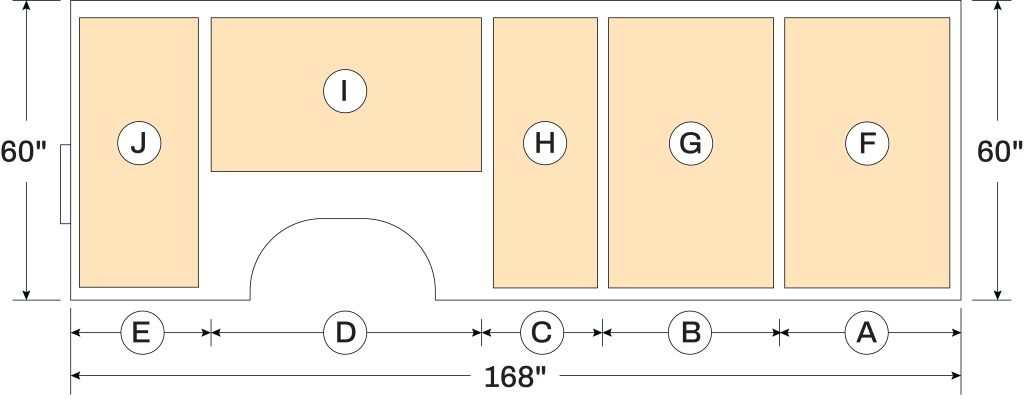

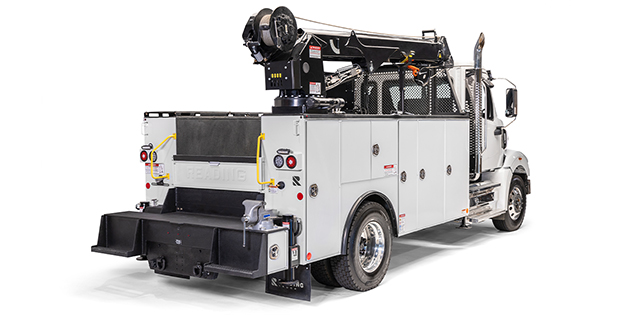

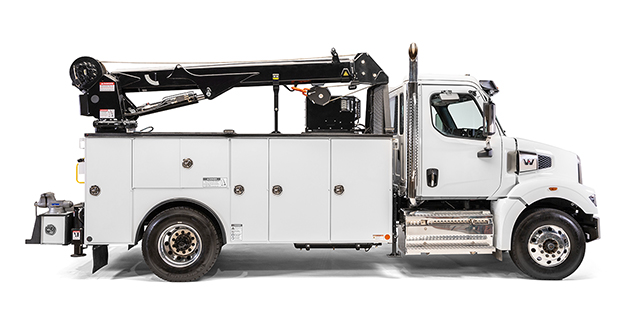

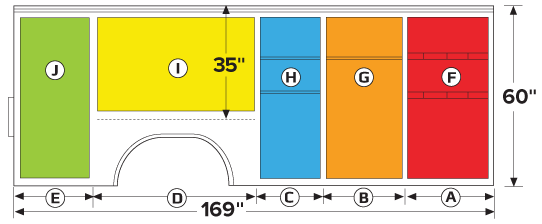

Curb Side
The Master Mechanic 378 Series is a 14 foot crane body built for a crane rating up to 12,000 lbs. (78,000 ft. lb.) and a 120″ cab-to-axle chassis.
Recommended chassis: Class VI (F-650, F-750, Peterbilt, Kenworth, etc.)
The Master Mechanic Series line is built modularly, so the dimensions listed can be configured to your exact specifications.
Features

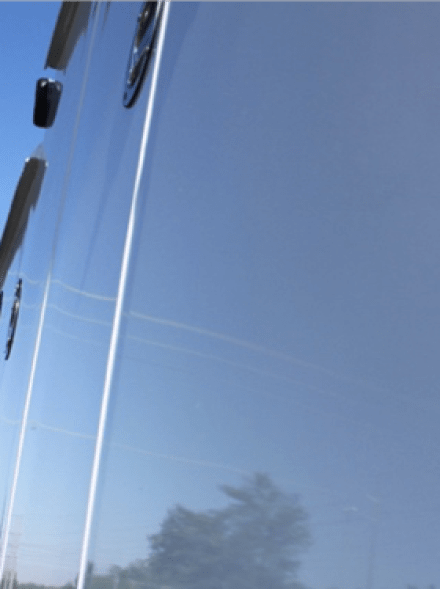

Flush Mount Doors
The flush mount doors give the body a clean appearance and a smooth surface for applying company graphics. It also creates minimal pry points for added security.
Compression Handle
Large compression handles are designed with ergonomics in mind, easy to operate with a gloved hand. The compression feature helps cinch the door tight during latching and secures the door in the closed position.

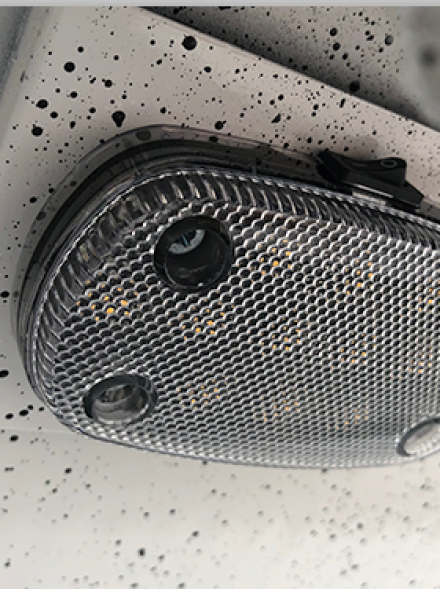

LED Interior Dome Lights
LED dome lighting located on interior ceiling of compartments.

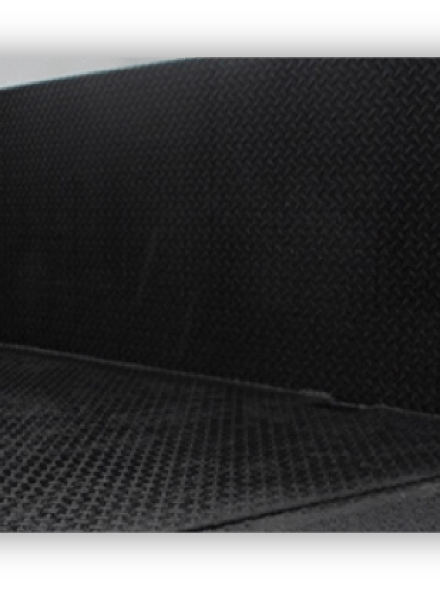

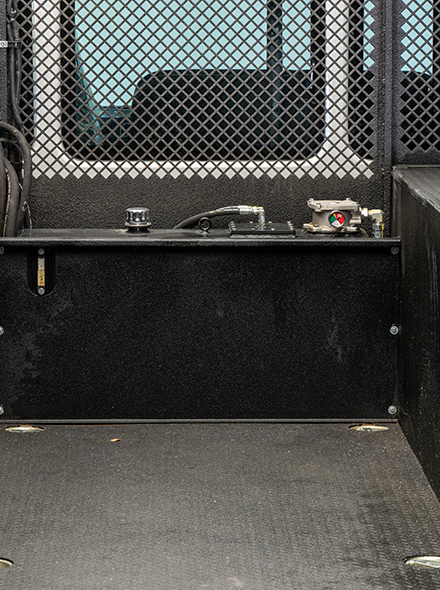

Tread Plate Surface
Reading MM bodies include heavy-duty surface protection. Tread plate covers the entire floor, sidewalls and tops of the side compartments. It’s also overlaid on the front panels of the compartment panels to protect the body going down the road.
External Lighting
External lighting gives the user 360 degrees of pivotable lighting. Completely weather resistant.
Nonskid Surface Protection
Reading MM bodies include a non-skid surface coating, that improves traction and reduces the risk of slip and fall injuries.
Internal Hidden Hinges
Internal hidden hinges create a smooth body surface and minimal pry points providing more secure storage compartments.
Ribbed Inner Panels
Ribbed inner door and floor panels give the body added strength and rigidity.

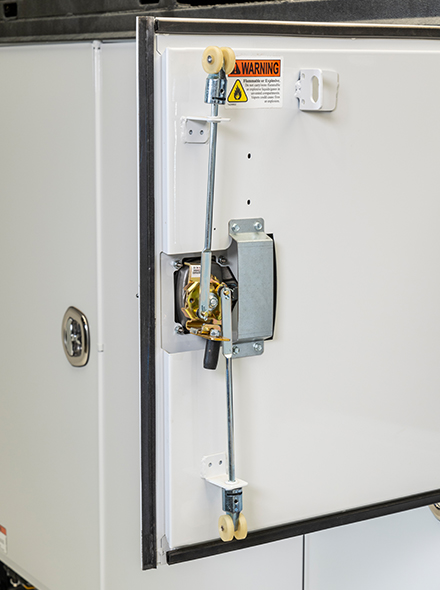

3-Point Locking
True 3-point locking when the handle is in the closed position.
Horizontal Cross-Members
Every body in the Master Mechanic Series is built with a minimum of 2 cross-members, reinforcing the substructure unlike any other body on the market.
Similar Truck Bodies

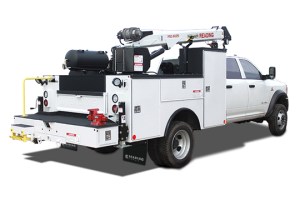

20-Series Crane Body
Presenting the latest evolution in our 4 decades of creating crane bodies. Designed for cranes up to 4,000 lbs. You’ll have heavy-duty lifting capability in a weight efficient package for efficient operation.
Discover More

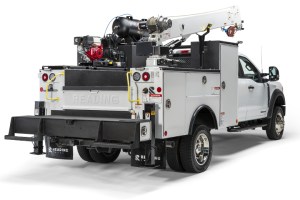

25-Series Crane Body
Built to accommodate a 5,000 lb. crane and ready to conquer harsh environments and demanding jobs with safety and ease. You’ll find plenty of standard features for working more productively than ever.
Discover More

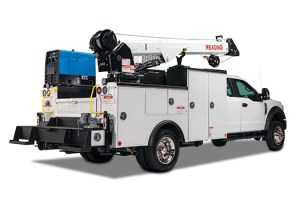

RM-45 Crane Body
