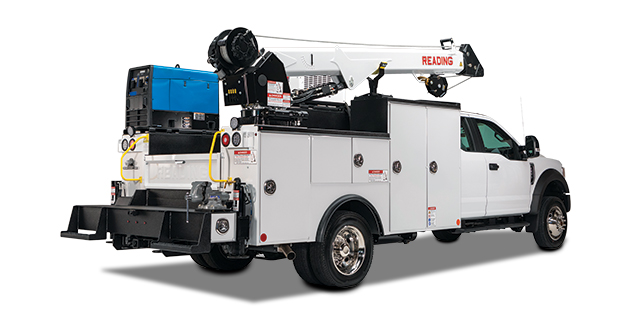

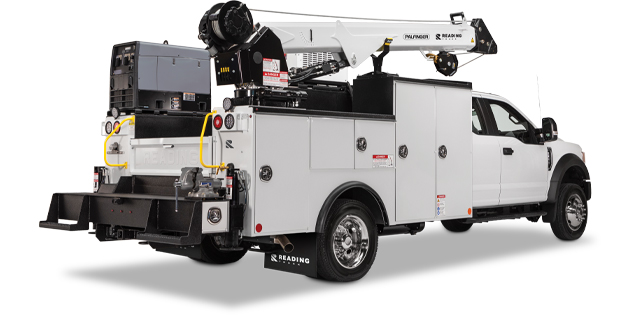

RM-45 Crane Body
Designed for versatility, built to perform. The RM-45 Crane Body is engineered to handle the toughest jobs, delivering strength and adaptability in one powerful package. Upfitted for use with 5,000– 8,000 lbs. hydraulic cranes, it can deliver up to 45,000 ft.lbs. of lifting moment. Plus, its torsion box understructure enhances strength and stability, ensuring durability on the job.
Flexible drawer options are available to boost your truck’s functionality. The RM-45 offers both 7 and 10 drawer configurations, giving you the flexibility to organize your tools and equipment efficiently.
Create a secure seal on your service body compartment doors without sacrificing convenience, all with the snap of a single handle and padlock. The master locking steel slide bar simultaneously locks an entire compartment side to keep your tools and other equipment safe.
This option provides bright, energy-efficient illumination inside your compartments, making it easier to locate tools and equipment, even in low-light conditions.

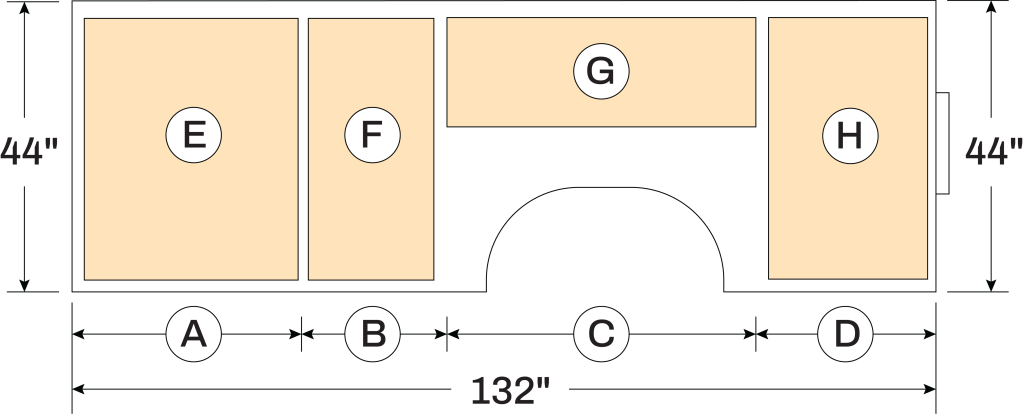

RM-45 CRANE BODY - 11' Body
| MODEL | CAB-TO-AXLE | A | B | C | D | APPROX. COMPARTMENT CLEAR DOOR OPENINGS | ||||||
| E | F | G | H | |||||||||
| 44" Roadside Height | 84" | 36" | 21" | 47" | 28" | 30 ½” W X 36 ½”H X 18 ¾”D | 17½” W X 36 ½”H X 18 ¾”D | 45 ½” W X 15” H X 18 ¾”D | 22 ½” W X 36½”H X 18 ¾”D | |||
| 60" Roadside Height | 84" | 36" | 21" | 47" | 28" | 30 ½” W X 52 ½”H X 18 ¾”D | 17½” W X 52 ½”H X 18 ¾”D | 45 ½” W X 15” H X 18 ¾”D | 22 ½” W X 36½”H X 18 ¾”D | |||
| 60" Curbside Height | 84" | 36" | 21" | 47" | 28" | 30 ½” W X 52 ½”H X 18 ¾”D | 17½” W X 52 ½”H X 18 ¾”D | 45 ½” W X 15” H X 18 ¾”D | 22 ½” W X 36½”H X 18 ¾”D | |||
The RM-45 Series is a 11’ Crane Body built for a crane rating up to 8,000 lb. (45,000 ft/lb.) and a 84” cab-to-axle chassis.
Roadside
Curbside
Features

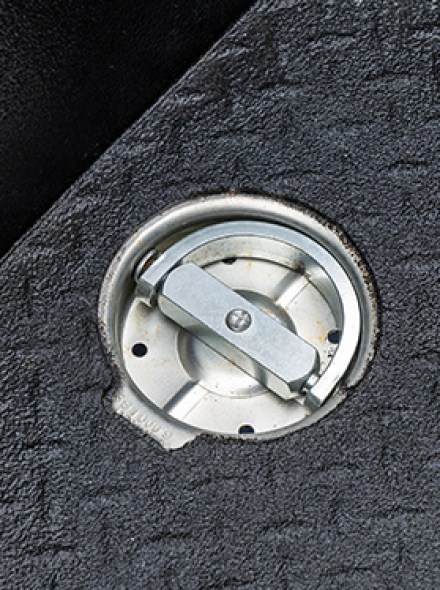

Integrated Tie-downs
The 11′ bodies come equipped with six fully integrated tie-down rings in the load floor. These allow you to utilize the entire bed when not in use.

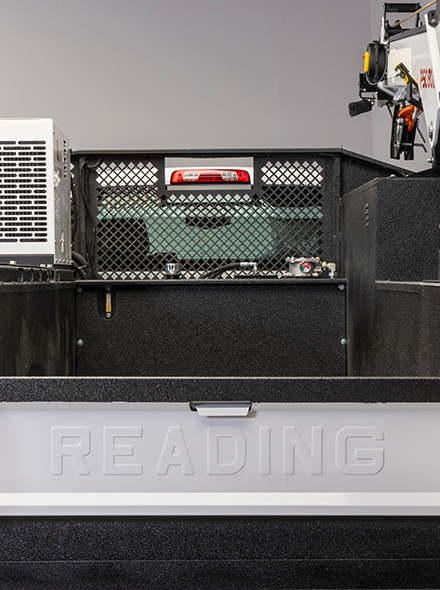

Integrated Headache Rack
The headache rack on the RM-45 protects the cab and provides the ideal mounting location for on-body work lighting. It also doubles as a wire channel, keeping wiring safely away from hazardous materials that may be stored in the tank compartment. This feature is integrated directly into the RM-45 for added convenience and safety.

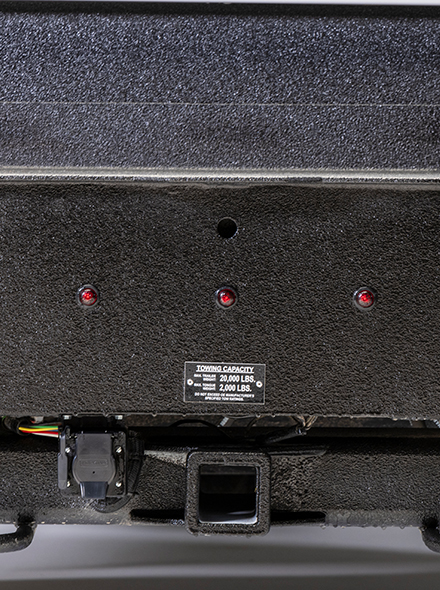

Tow Package
Body includes a 20,000 lb. Class V hitch with a 2 1/2″ receiver tube.

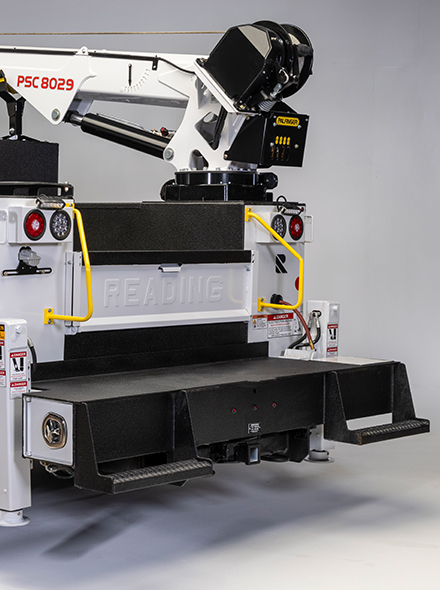

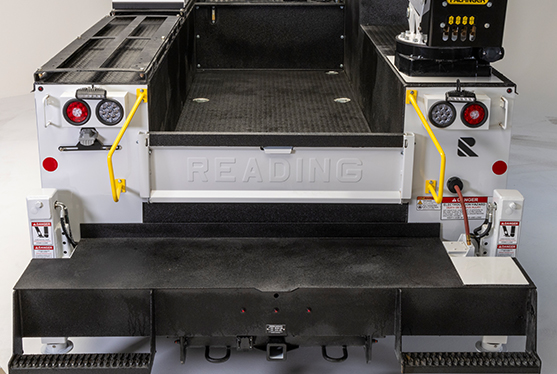

Workbench Bumper
The 21″ workbench bumper provides a generous workspace, with a 5/16″ riser vise plate to allow mounting a vise without drilling into the enclosed storage compartment. The all-new design is shaped to integrate and protect the power stabilizers, and safeguard the chassis’ rear view camera from damage. Permanently welded grip steps on both sides of the body provide easy access to the loadspace, with nothing to unfold.
Compression Handle
Our ergonomically designed compression handles are easy to use even while wearing gloves. With a full chrome polished appearance, they look as great as they work.
Tank Compartment
Designed for convenience and safety, the curbside front tank compartment provides a secure storage solution for oxy-acetylene tanks. Keep your equipment organized and easily accessible while ensuring a streamlined workflow on the job site.
Vise Plate
A vise plate is included with the 21″ and 23″ workbench bumpers. This feature adds stability and convenience, providing a secure mounting point for your vise to handle tough jobs with ease.

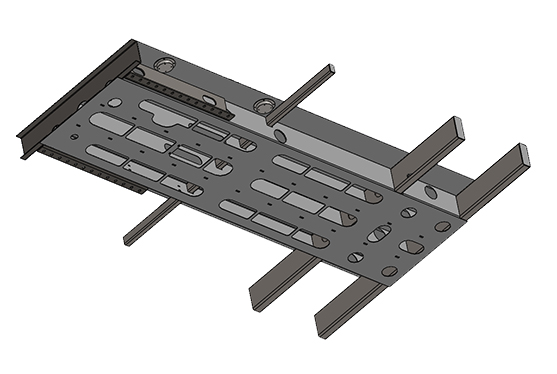

Torsion Box Understructure
Our torsion box understructure provides the strength to help the industry’s cranes deliver their full potential. No wonder our torsion box design is preferred where high strength and low weight matter.

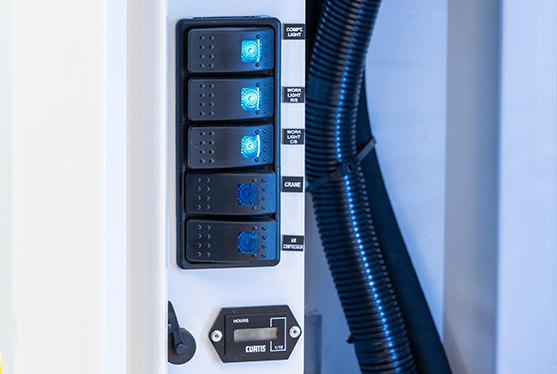

Control Panel
The control panel is designed to pair with popular crane setups, as well as many compressor and accessory systems. Located in the curbside rear compartment, the control panel for the RM-45 allows you to operate the hydraulic outriggers with valve controls and the exterior lighting with push-button switches.

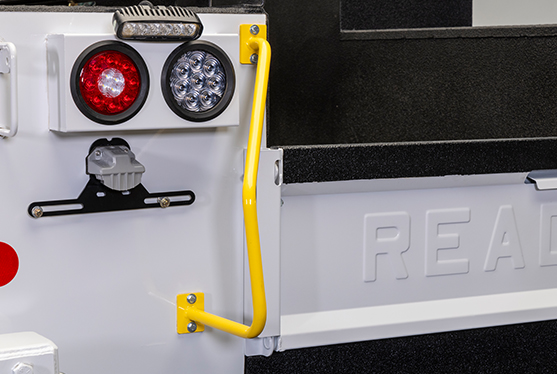

Safety Grab Handles
Reading RM crane body delivers three points of contact, to make it easy to climb in and out of the rear of the truck. Rear grab handles are generously sized, ergonomically placed, and included as standard equipment. Used in conjunction with our standard bumper steps, they help make the workday safer and easier.

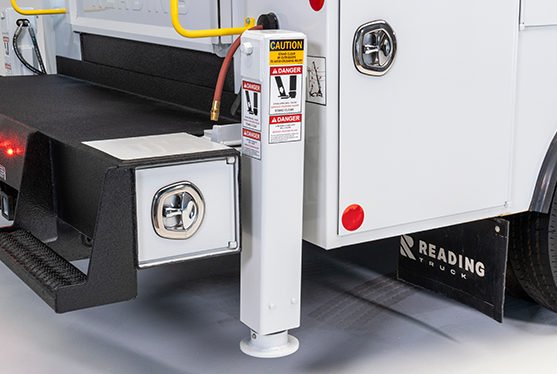

Outriggers
The RM-45 models are equipped with full-power hydraulic outriggers, delivering the confidence of safety and convenience working together. The hydraulic outriggers (45K) ensure stability and reliability, making these models ideal for heavy-duty lifting tasks.

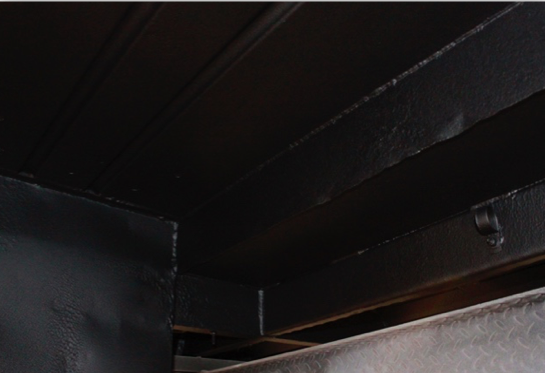

Spray Liner & Rust Protection
A professional-grade, spray-on bedliner provides outstanding protection against chips, scuffs and damage while minimizing rust. It features a slip-resistant surface that improves traction and safety when walking in the bed.

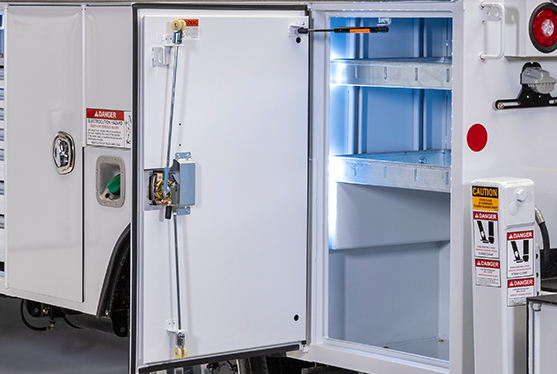

3-Point Locking
True 3-point locking when the handle is in the closed position.
