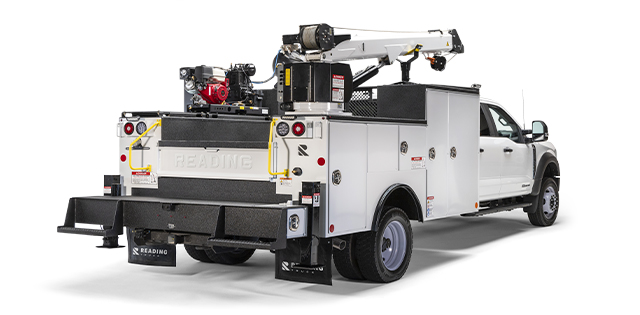

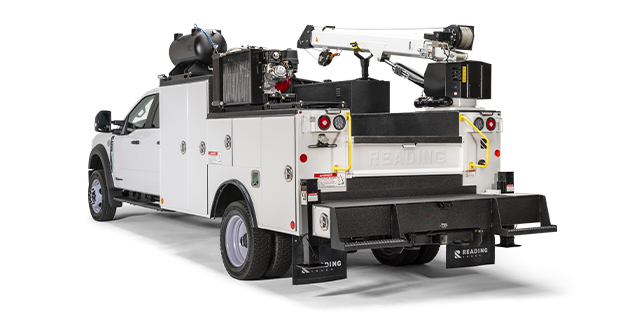

RM-35 Crane Body
Built to support demanding work environments, the RM-35 Crane Body delivers exceptional performance for mid-duty lifting tasks. Designed to be upfitted with electric cranes up to 6,000 lbs., the RM-35 is designed to handle one of the largest lifts an electric crane can achieve. Plus, its torsion box understructure enhances strength and stability, ensuring durability on the job.
Flexible drawer options are available to boost your truck’s functionality. The RM-35 offers 7 and 10 drawer options—giving you the flexibility to organize your tools and equipment efficiently.
Create a secure seal on your service body compartment doors without sacrificing convenience, all with the snap of a handle and padlock. The master-locking steel slide bar can simultaneously lock an entire compartment side to keep your tools and other equipment safe.
This option provides bright, energy-efficient illumination inside your compartments, making it easier to locate tools and equipment, even in low-light conditions.
Our RM Crane Bodies are designed to accept floodlights to increase your work-area visibility. Ultrabright LED 2,400-lumen lamps are adjustable to where you need them and keep you working safely after dark

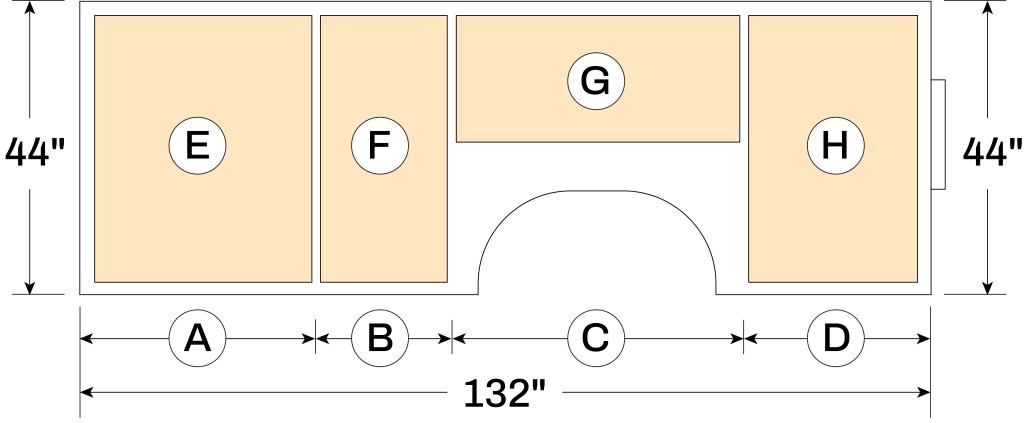

RM-35 11′ Crane Body
| MODEL | CAB-TO-AXLE | A | B | C | D | APPROX. COMPARTMENT CLEAR DOOR OPENING | |||
| E | F | G | H | ||||||
| 44" Roadside Height | 84" | 36" | 21" | 47" | 28" | 30 ½” W X 32 ½”H X 18 ¾”D | 17½” W X 32 ½”H X 18 ¾”D | 45 ½” W X 15” H X 18 ¾”D | 22 ½” W X 36½”H X 18 ¾”D |
| 60" Roadside Height | 84" | 36" | 21" | 47" | 28" | 30 ½” W X 52 ½”H X 18 ¾”D | 17½” W X 52 ½”H X 18 ¾”D | 45 ½” W X 15” H X 18 ¾”D | 22 ½” W X 36½”H X 18 ¾”D |
| 60" Curbside Height | 84" | 36" | 21" | 47" | 28" | 30 ½” W X 52 ½”H X 18 ¾”D | 17½” W X 52 ½”H X 18 ¾”D | 45 ½” W X 15” H X 18 ¾”D | 22 ½” W X 36½”H X 18 ¾”D |
The RM-35 Crane Body is a 11’ Crane Body built for a crane rating up to 6,000 lb. (39,000 ft.lbs.) and an 84” cab-to-axle chassis. Recommended chassis – Class 5: Ford F-550, Chevrolet 5500, Ram 5500, International CV, as well as others.

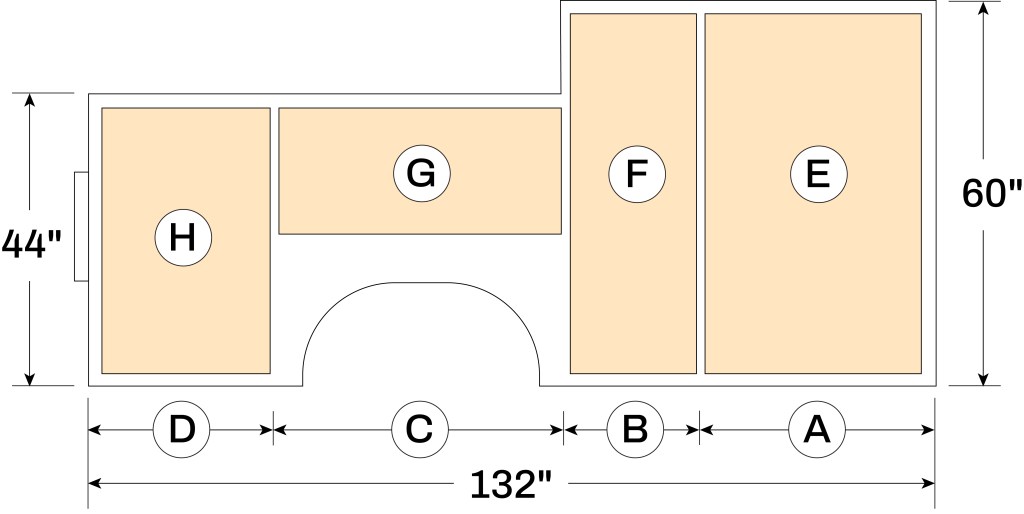

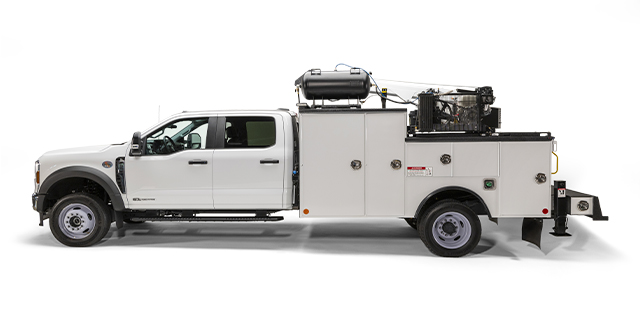

Roadside
Roadside

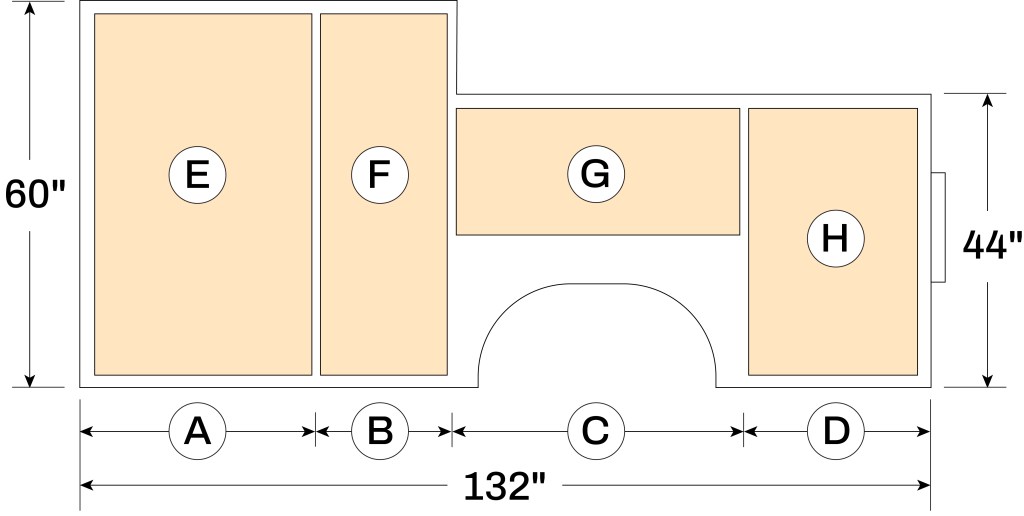

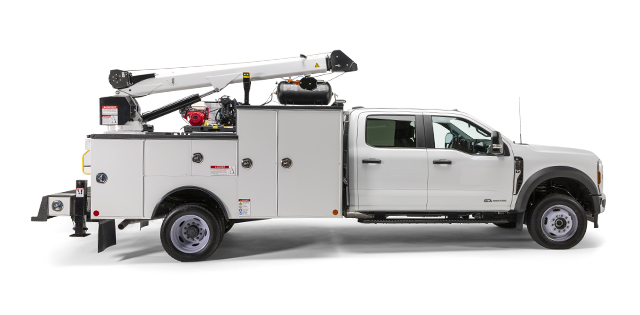

Curbside
Features
Spray Liner & Rust Protection
A professional-grade, spray-on bedliner provides outstanding protection against chips, scuffs and damage while minimizing rust. It features a slip-resistant surface that improves traction and safety when walking in the bed.
3-Point Locking
True 3-point locking when the handle is in the closed position.

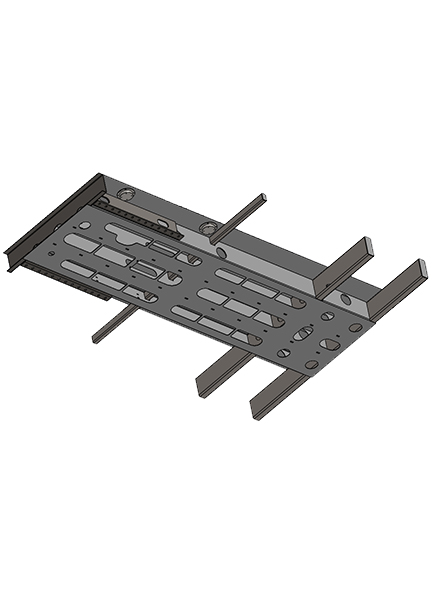

Torsion Box Understructure
Our torsion box understructure provides the strength to help the industry’s cranes deliver their full potential. No wonder our torsion box design is preferred where high strength and low weight matter.

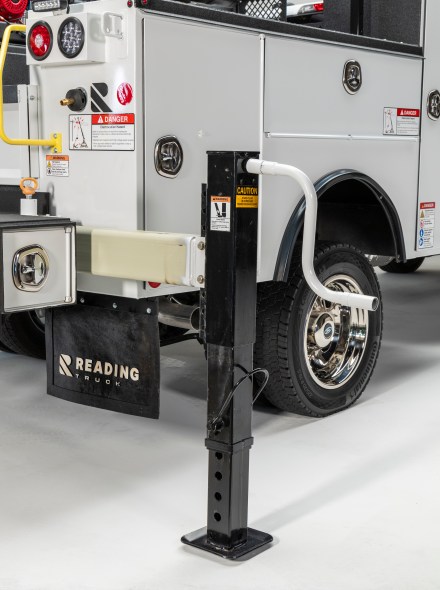

Outriggers
Our outriggers provide a safe and stable lift every time. The RM-35 offers a power out and manual down option with a 39,000 lbs. capacity, ensuring you have the right level of support for your selected crane.

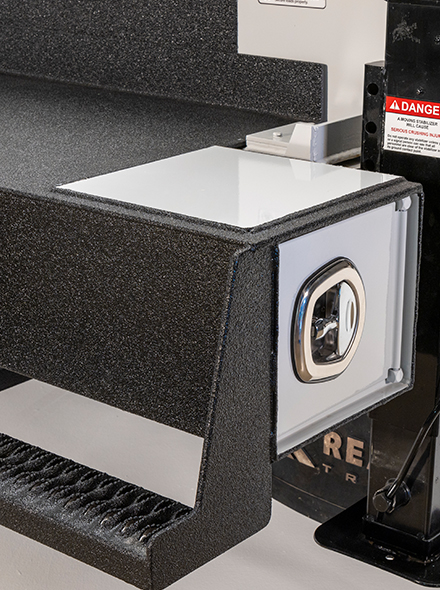

Vise Plate
A vise plate is included with the 21″ and 23″ workbench bumpers. This feature makes it convenient to add a vise, allowing you to perform various tasks with stability and precision.

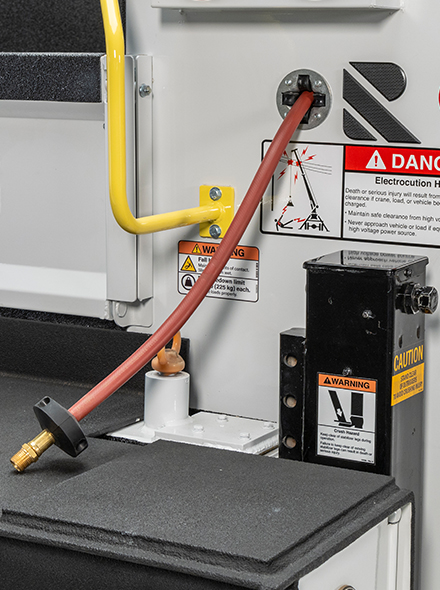

Air Hose Access
The air hose reel payout is positioned at the rear for easy access, ensuring compressed air is readily available when needed. Designed for efficiency, this feature keeps your workflow smooth and your tools powered on the job site.
Tank Compartment
Designed for convenience and safety, the curbside front tank compartment provides a secure storage solution for oxy-acetylene tanks. Keep your equipment organized and easily accessible while ensuring a streamlined workflow on the job site.
Integrated Tie-downs
The 11′ bodies come equipped with six fully integrated tie-down rings
in the load floor. These allow you to utilize the entire bed when not in use.
Safety Grab Handles
The RM Crane body delivers three points of contact, to make it easy to climb in and out of the rear of the truck. Rear grab handles are generously sized, ergonomically placed, and included as standard equipment. Used in conjunction with our workbench bumper, they help make the workday safer and easier.
Control Panel
Located in the curbside rear compartment, the control panel on the RM-35 allows you to operate the electric outriggers with push-button switches.
Compression Handle
Our ergonomically designed compression handles are easy
to use even while wearing gloves. With a full chrome polished
appearance, they look as great as they work.

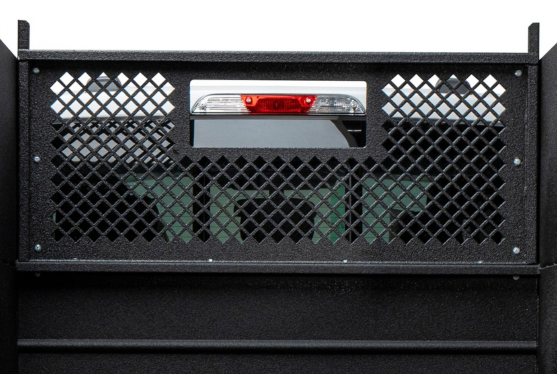

Integrated Headache Rack
The headache rack on the RM-35 protects the cab and provides the ideal mounting location for on-body work lighting. It also doubles as a wire channel, keeping wiring safely away from hazardous materials that may be stored in the tank compartment. This feature is integrated directly into the RM-35 for added convenience and safety.
Tow Package
Body includes a 20,000 lb. Class V hitch with a 2 1/2″ receiver tube.
Similar Truck Bodies

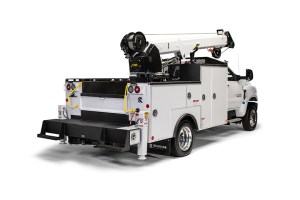

RM-45 Crane Body
Designed for versatility, built to perform. The RM-45 Crane Body is engineered to handle the toughest jobs, delivering strength and adaptability in one powerful package. Upfitted for use with 5,000– 8,000 lbs. hydraulic cranes, it can deliver up to 45,000 ft. lbs. of lifting moment.
Discover More
RM-25 Crane Body
The RM-25 Crane Body is the ideal solution for those who need reliable lifting capabilities without daily demands. Designed for cranes up to 5,000 lbs. You’ll have a dependable midweight performer built to help get the job done.
Discover More

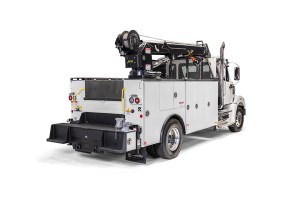

RM-78 Crane Body
